50 watts transistor amplifier

The amplifier and speakers that can handle medium-power is designed to provide a strictly amateur. Accidental overloads can damage the speakers, it is not appropriate for small systems.

What amp settings do not contain an element of the first connection wiring must be careful to work with.
Characteristics of the transistor, the fan or heat sink is cooled enough to find out if you need to focus!

Tech. parameters:
Power: + - 28V
Power: 50W / 4 ohms
Input sensitivity: 250mW of
Input resistance: 50 kOhm
Frequency range: 30Hz to - 30kHz

Optimal mobile recording portable player to another amplifier Multi Media.

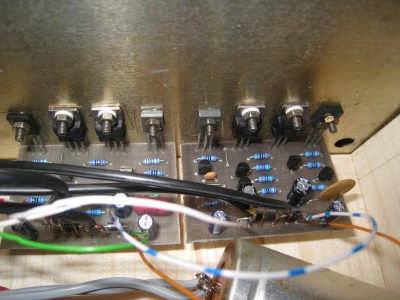

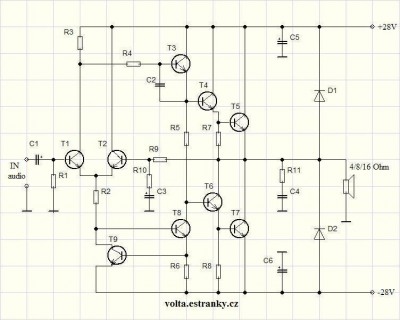

Here, the schematics this power amplifier



List of components:
R1, R2, R9 - 56K
R3 - 3K3
R4, R6 - 100R
R5 - 220R
R7, R8 - 120R
R10 - 1K
R11 - 1R
C1 - in 1μF / 35V
C2 - 33P - Ceramics
C3 - the 100μF/35V
C4 - 100 N (220N) - Ceramic
C5, C6 - 4.7 UF / 35V
D1, D2 - 1N4007
T1, T2, T9 - BC546
Q3 - BC640
T4 - BD139
T5, T7 - BD711
T6 - BD140
T8 - BC639

Following the DC voltage amplifier and limiter speaker protection is needed.















source: http://www.volta.estranky.cz/clanky/zesilovace-a-predzesilovace/tranzistorovy_zesilovac_50_W.2.html
